This was a project conducted during MATS 5.0 under the mentorship of Vanessa Kosoy and supported by a grant from BERI. It builds off the String Machines framework (and depends on the linked post for certain definitions), which models category-theoretic generalizations of finite-state transducers. [EDIT: The results here can also be found presented in self-contained form, in this paper.]

The framework as it previously existed did not have representation-independent ways of bounding (analogues of) time complexity, or natural guarantees that output size would not grow exponentially in input size. We introduce "filtered" transducers, which operate on categories enriched over filtered sets (sets equipped with a function to a partially ordered monoid, where morphisms are functions respecting order), and then, restricting our attention to transducers with a finite state space, prove constraints on the time complexity growth and expressivity of string machines.

Parameterizing complexity in string machines

Filtered transducers

Definition 1. The category  of filtered sets is the category such that

  • an object is a tuple , where  is a set and  is a function,
  • a morphism  is a function  such that  for all .

We will generally refer to objects in  solely by the symbol corresponding to the underlying set going forward. One can observe that the identity function on a set  by definition satisfies  for all  and is thus a morphism in . One can also observe that given  and  for all , and therefore  is also a morphism in . Therefore,  is indeed a category.

Definition 2. Given two objects , we define their filtered product  to be the set  equipped with the function  satisfying  for all . Given a morphism  and a morphism , we define the morphism  to be the function . Indeed, we have that , so  is a morphism in .

Due to the associativity and commutativity of addition, as well as the natural associativity and commutativity (up to isomorphisms which are still isomorphisms in ) of the cartesian product,  is naturally associative and commutative up to isomorphism. Additionally, the one-element set  equipped with  and unitor maps which are the same as in  (which are, by their definition, filtered morphisms) provides a left and right unit for , making  a symmetric monoidal category.

Remark. Suppose filtered sets  and filtered morphisms  and . Then, the unique factoring function  defined by  is only a filtered morphism  if , which does not hold in general. Therefore,  does not provide a product except for when at least one of the sets has degree uniformly zero. However,  does have finite products  where . We will not be using this construction.

Remark. The set-theoretic disjoint union, with its degree function being the canonical factoring map to  of its components' degree functions, provides all finite coproducts in .

Definition 3. A filtered-morphism category  is a locally small symmetric monoidal category enriched over , using 's filtered product  as its monoidal structure.

This expresses the notion of morphisms having degrees which are subadditive under composition in a way that naturally extends to a complexity constraint on transducers. As the monoidal identity of  is the single-element set with degree zero, the arrows  providing the identity morphism  in the enrichment construction will ensure that identity morphisms are degree zero.

One can generalize the construction of  by replacing  with any partially-ordered symmetric monoid (where the partial order is, obviously, translation-invariant as it is with the usual definition of a partially-ordered group). We will make use of categories filtered over  (with the partial order given by  if and only if  and ) in our construction of the filtered state category, as follows:

Definition 4. Given a filtered-morphism category  and a list  of -signatures (generators) and linear polynomials with coefficients in , the freely-generated -filtered category over  with this list of signatures, or , is the symmetric monoidal category where:

  • objects are exactly the objects of .
  • A morphism  is either a morphism of , or obtained by composing morphisms of  with free generators added to  for each -signature  in the list.
  • The -degree of a morphism  is a linear polynomial with coefficients in , which is either its degree in  (expressed as a constant) if it is a -morphism, the polynomial  if it is one of the generators  added when creating the category, or the sum of the degrees of all morphisms involved in its composition, with the degree contributions of composition-chains of -morphisms being the degrees in  of the morphism they compose to, and these being strictly additive with each other and the degrees of any generator morphisms once all simplifications have been performed.

    The monoidal product of a morphism with generators in its composition-chain and a -morphism is taken to have the sum of their -degrees.

We can now introduce filtered state categories.

Definition 5. Given a filtered-morphism category , its corresponding filtered state category  is the category where

  • an object  is a tuple , where:
    • The state space of  is a set .
    • The variables of  are a functor  from the discrete category corresponding to  to the discrete category formed by all finite ordered tuples of pairs of objects  in . We call the tuple associated with a given  the variables at , or . Since variables implicitly denote morphism signatures, we will refer to a given variable  as .
    • The degree of a variable  for some , denoted  (or simply  if  can be inferred from context) is a tuple . We impose the same partial ordering  on these tuples as we do with degrees in the freely-generated -filtered categories.
  • a morphism  of degree , where , is a tuple , where:
    • The state transition  is a function .
    • The output function at , denoted , is a collection of morphisms in a freely-generated -filtered category over , defined as follows:

      For each variable  of degree , at  defines a morphism  of degree at most  (that is, the degree of the morphism cannot exceed this polynomial in either of its terms) in the freely-generated -filtered category over  with generators and the degrees of those generators provided by the variables  of degrees  in . The function between hom-sets in  can then be expressed by substituting each generator with a -morphism of the appropriate signature.

      This induces a function (but not a filtered one!) between the product of the hom-sets  for all variables  at  and the product of the hom-sets  for all variables  at , which can be obtained by replacing each generator corresponding to a variable at  with a morphism of  of the appropriate signature.
  • Given two morphisms  of degree  and  of degree , their composition  is a tuple  where:
    • The composite state transition  is defined as .
    • The composite output function  is defined as follows: For each variable  defined at , of degree  defines a morphism of degree at most  in the category freely generated over  with generators corresponding to the variables  at  and their degrees. Now,  induces a functor from  to  (where  denote the variables at ), which fixes  but replaces every free generator of the category freely generated over the variables at  with the morphism associated with it by , in the category freely generated over the variables at . Therefore, the output function  at  is simply the image of each of the morphisms generated by  under this functor defined by . The function between products of hom-sets induced by the composite output function is therefore just the composition of the functions induced by the individual morphisms' output functions.

      Now, for a given variable  at  of degree , every generator of some degree  involved in the morphism of (initial) degree  defined by  has been replaced with one of degree . Suppose each generator  appears with multiplicity  in the morphism corresponding to . Then, we have it that , and since  worth of degree has been added to the morphism for every generator appearing in it, we have that the degree of the morphism generated by  must be . So, the degree of  is .

Remark is a filtered-morphism category with the degrees of morphisms being defined as in the definition of the category, as the identity morphism of each object  has an output function that outputs a variable of degree  (the generator corresponding to the variable itself) for any variable of degree  and is thus of degree zero. Additionally, as also demonstrated in the definition, degree is subadditive with composition, meaning that the composition arrow is indeed a morphism in .

Definition 6. A filtered functor  is an enriched functor between filtered-morphism categories.

Given a filtered functor , since the definition of an enriched functor requires the functor's action on morphisms to be provided by a morphism between hom-objects within the category, it automatically holds that  for all morphisms  in .

Definition 7. A filtered deterministic transducer is a deterministic transducer where the input and output categories,  and , are filtered-morphism categories, and the functor  affording the transducer structure is a filtered functor to the filtered state category of the output category.

Finite-state string machines

For the following section, we assume a filtered deterministic transducer  with input category , output category , structure functor , input state space , output state space , primary input -signature , auxiliary input -signatures , and output -signatures . We will now demonstrate that requiring a finite output state space on a transducer provides us with certain output size and time complexity guarantees.

Proposition 1. If  is finite, and, for every , the linear term of the degree of every variable in  is nonzero, then, for every  and every primary input -morphism , the number of copies of the generator corresponding to each auxiliary input  appearing in each morphism corresponding to each output signature  in  is bounded by a fixed integer , which does not depend on .

Proof. Since  is finite, and the number of variables which exist at any state is finite, there exists a variable with maximal linear degree  across all variables in all states in , in some state in . No morphism in  can generate a morphism in the appropriate -graded free category over  with linear degree greater than that of its corresponding variable. Therefore, given any starting state , no morphism  in  exists where any component of the output function has more than  copies of any of the generators corresponding to the variables at , since each of these will have sizes with linear term at least . ◻


Proposition 2. Suppose  is finite, and every variable in every state in  has a linear term of  or greater in its degree. Denote the primary input morphism of  as  and its tuple of auxiliary input morphisms as , and define . Then, for every output signature , there exist fixed integers  such that, for the morphism  outputted for this signature given these inputs, .

Proof. For every output signature , there exists a state  such that  attains some maximal linear coefficient , the generators corresponding to auxiliary inputs of  can appear in  at most some fixed  number of times. Additionally, a similar maximum  can be found for the constant term of . Since, by the definition of a filtered functor, , and by the definition of the state category, the -degree of the output at  can be at most , then . ◻


Corollary 2.1. Suppose a string machine composed only of a finite set of filtered transducers , where each transducer  has input state space  and output state space  such that every variable at every state in  has a degree with  or greater linear term, and  is finite. Denote by  the morphism that  will receive as its primary input morphism, given overall input morphisms  and input states  to the string machine. Then, .

Proof. Suppose two transducers , where  receives a primary input morphism  and auxiliary input morphisms . Therefore, by Proposition 2, there exist integers  such that, for a given output  produced by , the degree of  satisfies . Now, if the primary input of  is not connected to an output of , then the string machine composed of these transducers satisfies the proposition, as the inputs of  are now included in the overall inputs of the string machine. If  is composed into the primary input of , however, then . Given similar coefficients  for a given output  of , we can see that , where  is bounded from above by either the same kind of linear sum as the one for  (if the greatest degree among the auxiliary inputs comes from an output of ), or the degree of yet another additional input to the overall string machine. Therefore, any further composition of transducers  will result in  also being bounded by a linear sum of the degrees of the overall inputs of the string machine, meaning that the sum  is also bounded by a linear sum of these degrees. ◻

Corollary 2.1 can be used to bound the time complexity of string machines, if, fixing some model of computation, we have a bound on the time it takes to run a single transducer as a function of its inputs. We note that the coefficients bounding output size are multiplied together upon composition into either an auxiliary input or a primary input, but only composition into a primary input ties the degree of the state transition that will occur in the second transducer to the primary input degree of the first transducer. We define the sum bounded in the corollary as follows:

Definition 8. Take a string machine  with input signatures  and input state spaces , where the transducers forming  form the set . Denote by  the morphism that the transducer  will receive as its primary input morphism, given inputs  ( for short) and  ( for short) to . We define the internal total primary input degree of  to be .

While we have established that, lacking a meta-vertex,  will be linearly bounded by the total degree of its inputs, its scaling properties as a function of the number of transducers composed has no such guarantees. One can observe that composing more and more transducers that double their input size together causes exponential growth in . As we are interested in the time complexity of both string machines that incorporate a meta-vertex and of parameterized families of string machines, we must obtain some sufficient conditions for  to grow polynomially in the number of transducers in our string machine. To help determine these conditions, we will define the output-degree-bounding parameters referenced in Proposition 2.

Definition 9. Take a filtered deterministic transducer  with a finite output state space  and an output signature  of . Given an input state , primary input morphism , and auxiliary input morphisms  to , denote by  the output morphism produced for . We define the output degree  of the output  of  to be the integer triple  such that the relation described in Proposition 2, , holds for all possible  and  (and the  produced by these inputs). Given the minimal linear term  (at least ) that the degree of any variable in any state in the input state space of , and the maximal linear term  and constant term  for the degree of the variable in the output state space corresponding to , we can unambiguously define .

We can now prove some elementary sufficient conditions for  for a family  of string machines to grow polynomially in .

Proposition 3. Suppose a family of string machines , where  is composed of a single filtered deterministic transducer with a finite output state space, and for  is created by composing some of the outputs of  into the inputs of a new filtered deterministic transducer with a finite output state space, such that the remaining uncomposed input legs of each  are the same for all . Given the output  of  composed into the primary input of the new transducer added to obtain , we designate the transducer that that output is produced from as , and write . Now, fixing any input states and morphisms,  for some , regardless of the value of the inputs fixed, if the following conditions are met:

  • We have that , for some fixed .
  • We have that .
  • The number of times that  is .

Proof. Omitting our input morphisms and states, we have that , where  is the output of  composed into the new transducer's primary input.  is obviously simply the degree of our initial primary input.  either adds  degrees' worth of material to the new transducer's primary input compared to , or at most multiplies  by some fixed amount and then adds this extra degree. Since subsequent multiplications of this sum can be bounded from above by doing all the additions first first and then multiplying the result by the cumulative multiplication thus far, the function bounding  can be expressed as a sum

 where  is the constant coefficient affording the  bound, and  is the total degree of the input morphisms to . ◻

Assuming the time complexity of a state-category morphism is proportional to its degree, we must impose either a constant or logarithmic bound on the number of primary-input compositions where the output is multiplied to preserve time complexity that is polynomial in the total number of transducers. In the figure, vertical arrows go to a transducer’s primary input, while horizontal ones go to its auxiliary input.

Remark. We have thus far only considered filtered transducers where the linear term of every variable in the input state space is non-vanishing. If we change this condition to only require that the constant term of the variable be non-vanishing, then the total number of generators in the -filtered category over the output category produced in the output is still bounded by a linear function of the primary input signature. So, the degree of the output function is now linear in the product of the degrees of the primary and auxiliary inputs. One can observe, however, that any composition of transducers will only cause outputs to be multiplied with each other a fixed number of times, so  will now be bounded by a polynomial in the total inputs of the string machine.

String machine description length

As string machines can themselves be thought of as morphisms in a category, and we are interested in extending our complexity constraints to the case where the meta-vertex is involved, we must imbue the category that string machines are morphisms in with a filtered category structure itself. While this could be accomplished by setting the degree of a string machine to just be the number of transducers involved (where a no-transducer string machine is just the identity and has degree zero), this obviously fails to capture the internal complexity of a transducer.

If we require that the input category of every non-meta-vertex transducer be finitely-generated, then we could make reference to the size of some fixed graph representation of a transducer's transition table and output functions corresponding to generators, and then have this size be additive when transducers are composed. However, as discussed in the previous section, this description size does not constrain time complexity for transducers which build other transducers and then run them. We discuss possible approaches in our conclusion.

The expressivity of finite-state string machines

Now that we have obtained guarantees for the scaling of , which can be thought of as an analogue to the time complexity of running a string machine, in both the number of transducers in a string machine and in input size, we focus on characterizing the expressivity of string machines consisting of finite-state deterministic transducers, that is, filtered deterministic transducers where the state space corresponding to every element of the input category (not only the output state space) is finite.

In the following section, we will assume that all transducers have an input category that is of a form described as follows:

Definition 10. A tape category is a filtered-morphism copy-discard category  freely generated over a single object  and a finite number of morphisms of the form  (where superscripts denote monoidal self-products), where every generator morphism has positive degree. If all our generator morphisms are of signature , then a tape category is the copy-discard category freely generated over the symmetric monoidal category freely generated from the multicategory with one object freely generated from those generators, by way of the functor from multicategories to monoidal categories proven by Hermida to be an adjoint to the forgetful functor in the other direction.

We can treat tapes as a special case of tape category, where all generators are endomorphisms of the generating object.

Without a meta-vertex

Finite-state string machines, even without a meta-vertex, can prepend to their output, which is not something the traditional definition of finite-state transducer can do. It is natural to investigate if this makes the framework more expressive than a deterministic finite automaton, e.g., having it recognize palindromes by reversing a string and then feeding the product of these two (their overlaying) into a transducer that then checks if each character matches up.

Unfortunately, given morphisms  and  in an input category (not necessarily a tape category) , and their product , we can see that, since , a state transition on a collection of finite state spaces induced by the product of two morphisms can only capture the same sort of information that could be captured by independently running two finite-state transducers on both morphisms and comparing their states at the very end.

Thus, "per-character" comparisons of the sort that would require conditions analogous to aligning characters on tape would require infinite state spaces to represent the equivalent memory operations being performed. However, due to the nature of the auxiliary input, as well as the aforementioned prepending capabilities, we are clearly able to model functions that finite state transducers cannot, even without a meta-vertex.

To characterize the class of decision problems computable by non-meta-vertex finite-state string machines, we first prove the following lemma:

Lemma 4. Suppose some finite-state transducer  with primary input signature  in a tape category , structure functor , and output state space , such that these are its only inputs and outputs. Fix a finite set of morphisms  in the freely-generated -filtered category over  with a single generating signature  of degree , such that the linear coefficient of the degree of each  is at most  (that is, the generator corresponding to  appears at most once). Suppose we are able to construct a primary input morphism  for this transducer in the following way:

  • Our starting value for  is .
  • We can replace  with with one of the previously-given , with  substituted for the generator morphism. We can perform this step a finite of times.
  • Then, given some state transition reached as a result of some such , the space complexity of computing the output state of the transducer is  in the degree of .

Proof. We will assume that one "computational step" involves performing one of the operations involved in constructing  described above. We will demonstrate that computing the next state after any of the operations performed requires storing an amount of information that is  in the degree of .

  • If one of the  does not have the generator morphism appear at all, then  after this  has replaced  depends solely on the  used, and since the set of such  is finite, it takes a finite amount of space to store the state reached from the starting state when one of these  are evaluated.
  • If one of the  only involves post-composing an endomorphism of  into the generator, then storing the state reached from a given state after any of these endomorphisms is post-composed takes a fixed amount of memory, since the set of  is finite.
  • If one of the  involves only pre-composing and post-composing endomorphisms of  into , then computing the resultant state after the action of one of these  only requires us to store  extra "possible current states." That is, if we know what state we would be in after the evaluation of  had we started at any other one of the  states of the transducer, then after computing which new starting state we would have started at (which, since the set of endomorphisms we pre-compose is finite, is equivalent to storing a fixed-size transition table), we can then pick the state that the copy of the transducer that started at that state would be at after the action of . This is therefore equivalent to running  copies of a finite state automaton, where each copy starts at a different state.
  • Suppose one of the  is obtained by taking a morphism , post-composing morphisms into each branch (such that one branch includes the generator), and then finally post-composing a morphism . Even if multiple "branchings" occur, since the generator where  will be substituted appears only once, we can still decompose this into a morphism obtained by first taking the monoidal product of  with a number of fixed morphisms such that the overall signature of their product is , and then composing in  and . Now, we only need  space to store the functions  and  induced by  and , since these are functions between finite sets. Additionally, for the function  induced by the monoid product of  with with a fixed morphism  of signature , by the property discussed at the start of this section, we only need to be keeping track of the action of  on  (which, since there are a finite number of , only requires keeping an absolutely bounded number of automata running), and then compute the action of  on the result, which, as a function with a finite domain and codomain, takes finite space to store.

Therefore, to compute the state transition induced by , we only need to keep  copies of the finite state automaton running, as well as some fixed number of finite-state automata with input and output state spaces corresponding to  for some fixed . ◻

With this lemma, it now remains to show, roughly speaking, that for any string machine made out of finite-state deterministic transducers which decides some language (represented by morphisms in a tape category), the computation performed at every input morphism can be broken into a constant-bounded number of transitions of the type described in the lemma. We present a conjecture that finite-state string machines without a meta-vertex can only recognize regular languages, followed by a sketch for a proof of this conjecture.

Conjecture. Suppose a string machine composed only of finite-state transducers, where the input and output categories of each transducer are tape categories. Suppose this string machine has only one free input  in some tape category  where all generating morphisms (which form a set ) are endomorphisms of the generating object , and has as its sole output a state space , with some subset of  designated as accepting. Then, taking an endomorphism  in  which does not include any instances of the copy morphism to be a string over the alphabet , any language over  accepted by this string machine is regular.

Proof sketch. It suffices to prove that the computation involved in deciding this language takes constant space as a function of input size, as . More precisely, given any input morphism  and a finite set of possible character strings that we can post-compose into , we desire to show that there is a constant-bounded amount of information (independent of the size of ) that we need to store, which will allow us to calculate the output state after any of these character strings are added to . By Proposition 1, each transducer involved in the string machine can create a constant-bounded number of duplicates of its auxiliary inputs within each of its outputs. This means that to predict the state of a given transducer after one of the operations described in Lemma 4 done to an auxiliary input, we need to store a constant amount of information. Moreover, due to the limitation caused by the size of a variable on the number of transitions one can make before we run out of variable space and must either limit ourselves to Lemma 4-like operations or reset, the number of "shapes" auxiliary inputs can exist in is absolutely bounded. The hope is that if we back-propagate until reaching the primary input of the first transducer, we will still have a constant-bounded amount of information to keep track of to predict the output state after the next character is reached.

Remark. This conjecture is already suggested by the combination of Corollary 2.1 and classical results by Kobayashi and Hennie which together imply that any one-tape Turing machine that runs in  time decides a regular language. The reason the proposition is not trivially implied by these results is that a naive simulation of the string machine in question on a single-tape Turing machine will cross the last cell of its initial input a guaranteed  times (when going back and forth to read the next cell to write the inputs to feed to the next automaton in line). The conjecture would also automatically be implied if we prove that the composition of two finite-state transducers can be equivalently modeled by a single finite-state transducer.

With a meta-vertex

The meta-vertex, even at meta-level one, can clearly be seen to increase the expressivity of finite-state string machines. We construct a string machine which can be recognize palindromes as follows:

Given a tape category  where all generating morphisms are endomorphisms of the generating object , mark a special generating endomorphism . Given a generating endomorphism  of , we define  to be the filtered deterministic transducer with input and output category , with input and output signatures  and three states, a fixed one of which is the starting state. When in the starting state,  will transition to the "accepting state" and store  in the sole variable at that state if it encounters , and transition to the "rejecting state" and store  if any other generating morphism is encountered. When in the rejecting state, all morphisms are mapped to the identity on the rejecting state. When in the accepting state, all morphisms transition back to the accepting state, but this time append the current primary input generator morphism to the output. The end result is that when given an endomorphism , the transducer  will output  with its first "character" removed if and only if it starts with , and output  otherwise. As a morphism, it is of signature .

Now, we define a filtered deterministic transducer  with input category , which outputs a filtered deterministic transducer without meta vertices. This transducer has input signature  and only one state, with one variable of signature , and it is assumed that no morphism  fed to  will include . Given a generator morphism  of , the transducer  will prepend  to the current variable's stored string machine. If we compose a meta vertex that takes the output of  and takes the same input morphism as  and passes it on to the string machine formed by , then we obtain a string machine that outputs  if it is given a palindrome, and  if it is fed anything else.


Thus far, we have proven results about the time complexity and expressivity of finite-state deterministic transducers in the string machines framework. This framework allows us to model the compositionality of transducers in a way that allows for more compression of description length. For example, we are able to implement the trivial time-space tradeoff of recognizing a regular language that is the intersection of several regular languages by running several automata in sequence instead of the product automaton, or the cascade product in Krohn-Rhodes theory by having a transducer "shuffle" its primary input using its ability to prepend.

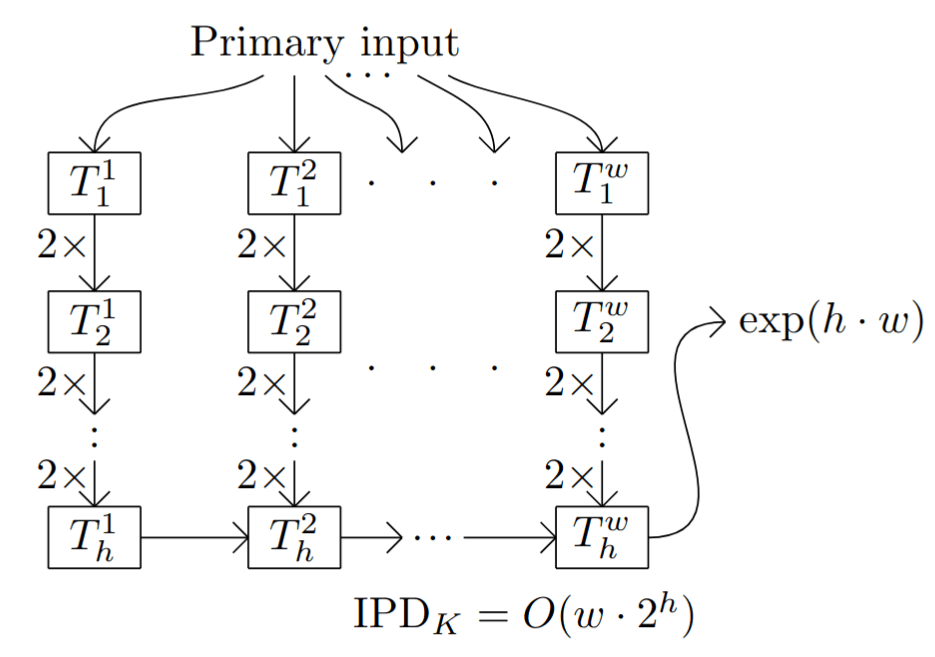

Additionally, our time complexity scaling guarantees in the number of transducers in a string machine translate to sufficient conditions for transducers which build and run other transducers in runtime to run in polynomial time. This will allow us to take advantage of the additional compression opportunities the meta-vertex presents. These results are valuable for developing string machines into a framework that can be used to model hypothesis spaces representable by automata.

Further work

Description complexity that encapsulates time complexity

As exemplified by Definition 4, the construction of filtered sets can be extended to a partially-ordered monoid that is not . Since a string machine without a meta-vertex will have the degrees of its outputs be bounded by a linear function of the degrees of its inputs, we can assign a degree  to finite-state filtered transducers, where  and  are the maximal values for some sum of the coefficients appearing in the output degree in Definition 9, where the partial order is the same as in Definition 4. However, in this case, the monoid operation imposed on the polynomials is composition, due to how the linear relations bounding output size get composed when transducers are composed, and the filtered-set category is no longer symmetric monoidal since this operation is not commutative.

Now, the variables in our state categories would have their degrees be of the form , where a morphism of degree  can compose in a transducer of at most that degree, meaning the output variable is of degree  by abuse of notation. where the superscript indicates -fold self-composition. At further meta-levels, we keep adding terms, though it is unclear how we would disambiguate which variable to compose into for the monoid operation.

Characterizing the expressivity of transducers with a meta-vertex and monadic transducers

We have not yet established bounds on the expressivity of finite-state deterministic transducers which incorporate the meta-vertex, but, due to the bounding on levels of meta, it is likely that the languages they decide are some subset of context-free languages. The time complexity guarantees also need to be translated to the monadic case. Work on bounding the expressivity of monadic string machines may involve defining equivalents for string machines of various properties (see work by Mohri, Allauzen et al., Kostolanyi, and Bell et al.) which characterize determinizable weighted transducers, which may in turn allow us to bound the computational complexity of computing the distribution on output morphisms given by a monadic transducer.
