This is a linkpost for

Cross-posting a paper from the Google DeepMind mech interp team, by: Tom Lieberum, Matthew Rahtz, János Kramár, Neel Nanda, Geoffrey Irving, Rohin Shah, Vladimir Mikulik

Informal TLDR

  • We tried standard mech interp techniques (direct logit attribution, activation patching, and staring at attention patterns) on an algorithmic circuit in Chinchilla (70B) for converting the knowledge of a multiple choice question's answer into outputting the correct letter.
    • These techniques basically continued to work, and nothing fundamentally broke at scale (though it was a massive infra pain!).
  • We then tried to dig further into the semantics of the circuit - going beyond "these specific heads and layers matter and most don't" and trying to understand the learned algorithm, and which features were implemented
    • This kind of tracked the feature "this is the nth item in the list" but was pretty messy.
    • However, my personal guess is that this stuff is just pretty messy at all scales, and we can productively study how clean/messy this stuff is at smaller and more tractable scales.
  • I now feel mildly more optimistic that focusing on mech interp work on small models is just fine, and extremely worth it for the much faster feedback loops. It also seems super nice to get better at automatically finding these circuits, since this was a many month manual slog!

See Tom's and my Twitter summaries for more. Note that I (Neel) am cross-posting this on behalf of the team, and neither a main research contributor nor main advisor for the project.

Key Figures

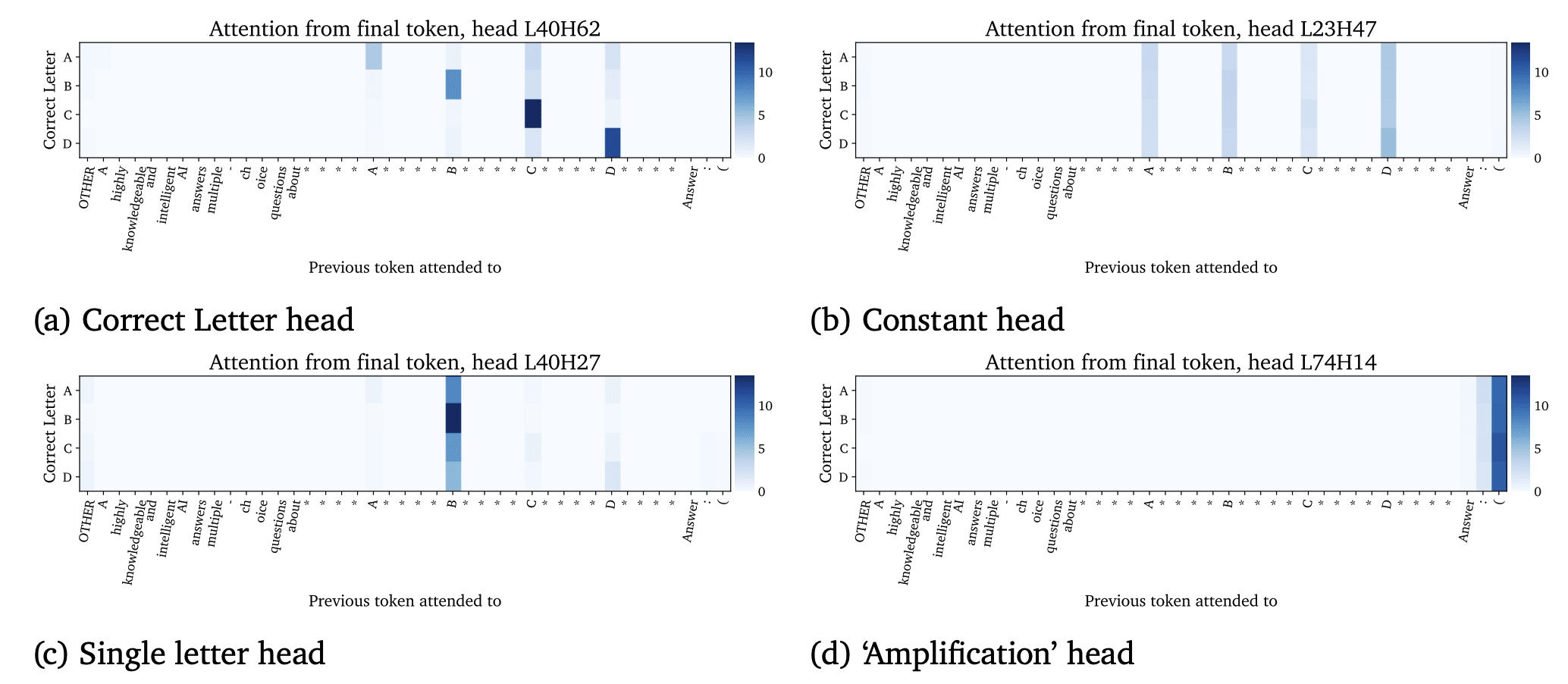

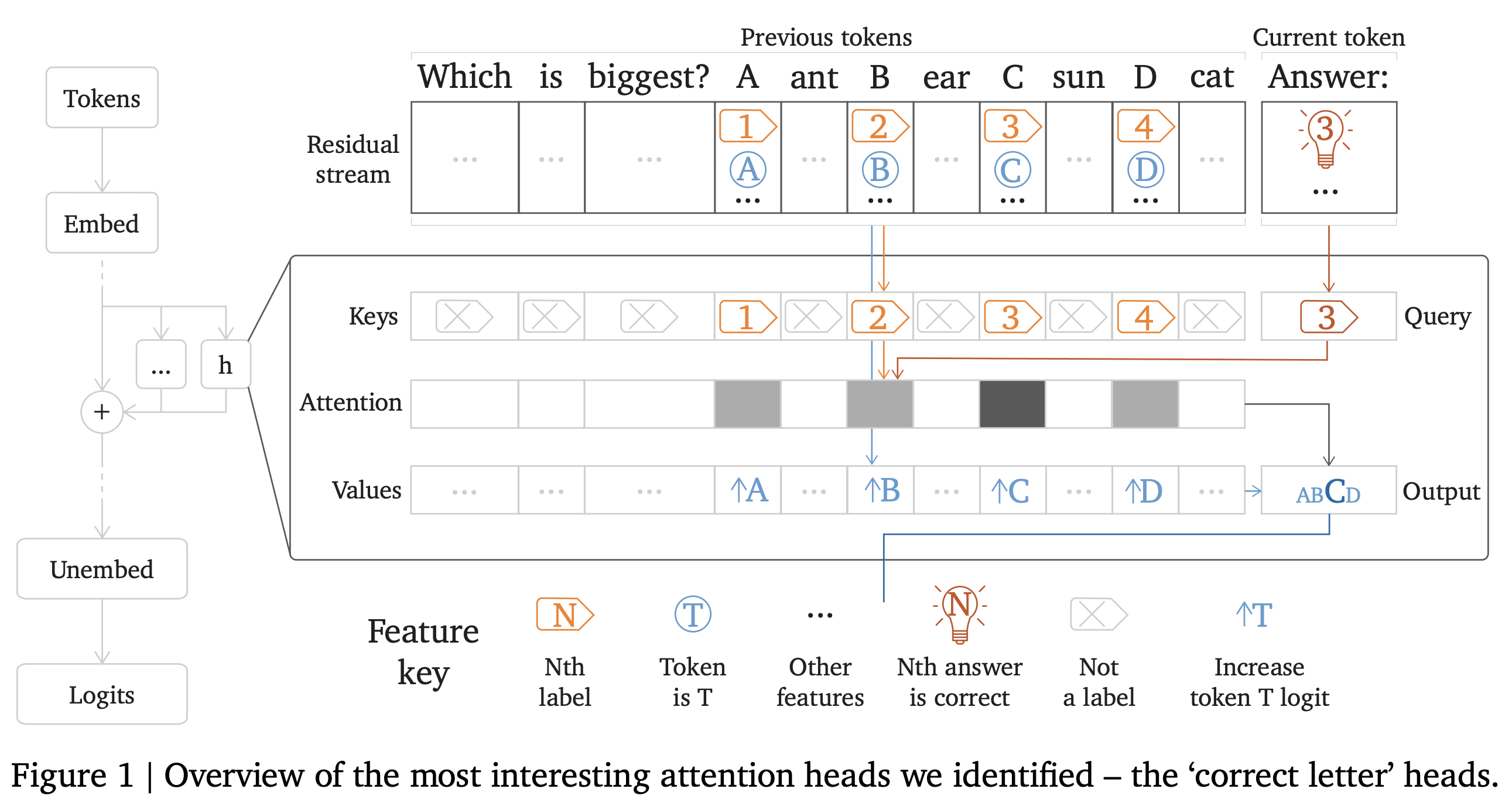

An overview of the weird kinds of heads found, like the "attend to B if it is correct" head!

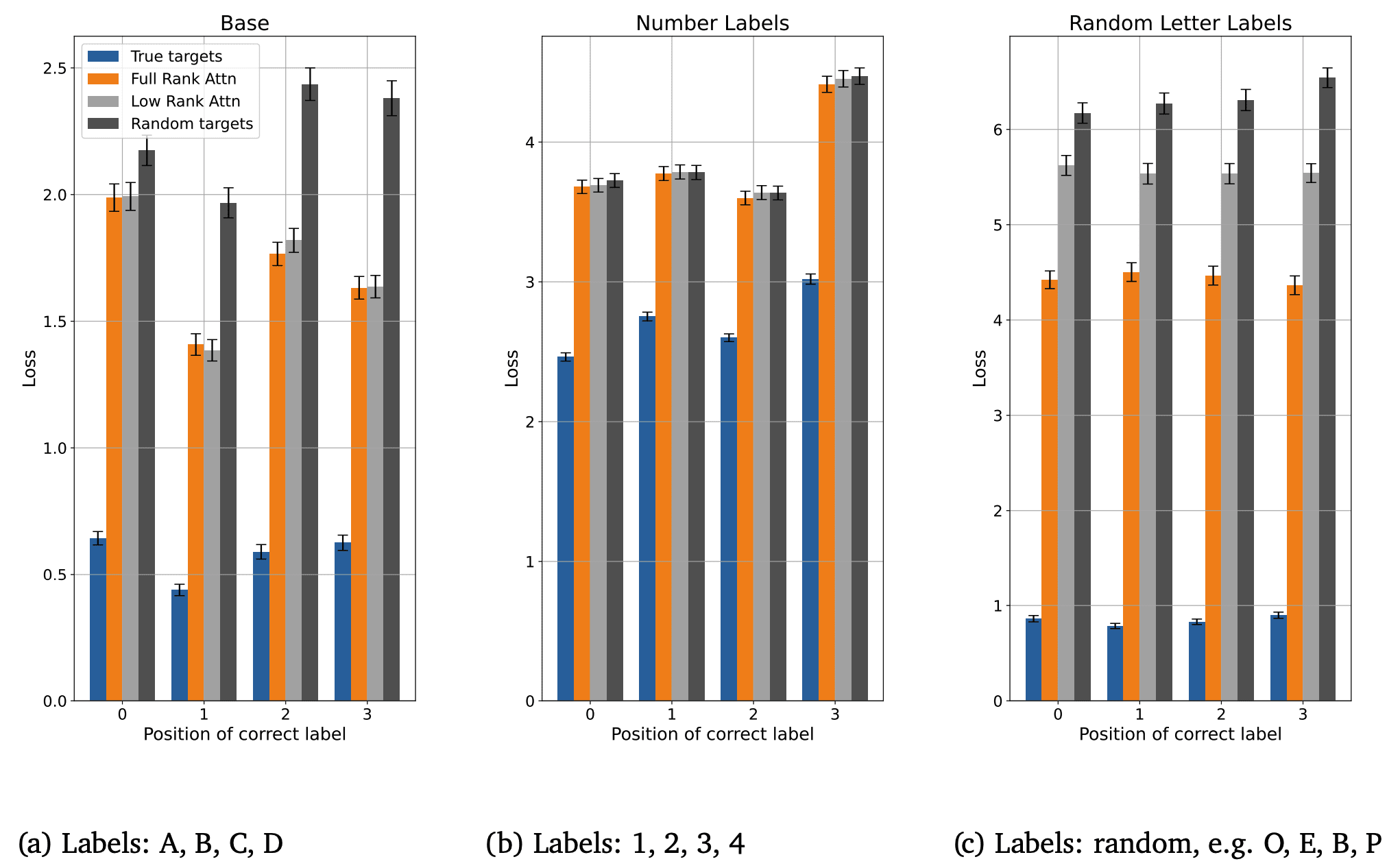

The losses under different mutations of the letters - experiments to track down exactly which features were used. Eg replacing the labels with random letters or numbers preserves the "nth item in the list" feature while shuffling ABCD lets us track the "line labelled B" feature

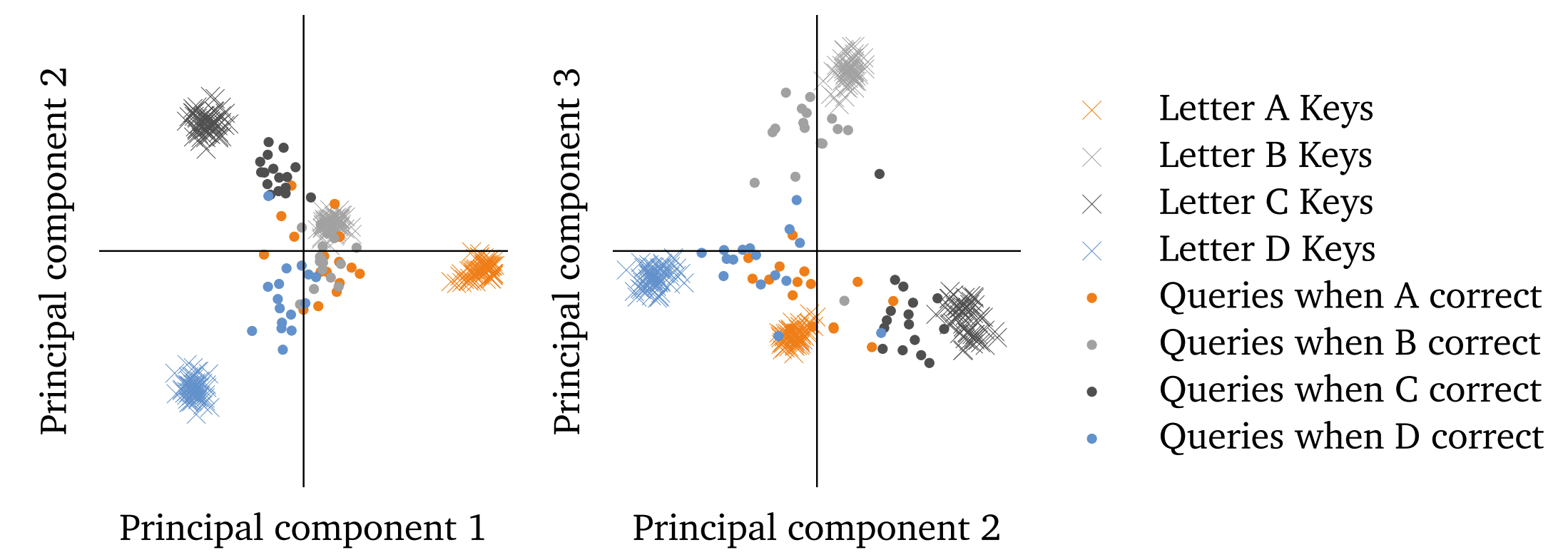

The queries and keys of a crucial correct letter head - it's so linearly separable! We can near loss-lessly compress it to just 3 dimensions and interpret just those three dimensions. See an interactive 3D plot here


Circuit analysis is a promising technique for understanding the internal mechanisms of language models. However, existing analyses are done in small models far from the state of the art. To address this, we present a case study of circuit analysis in the 70B Chinchilla model, aiming to test the scalability of circuit analysis. In particular, we study multiple-choice question answering, and investigate Chinchilla's capability to identify the correct answer label given knowledge of the correct answer text. We find that the existing techniques of logit attribution, attention pattern visualization, and activation patching naturally scale to Chinchilla, allowing us to identify and categorize a small set of output nodes (attention heads and MLPs).

We further study the correct letter category of attention heads aiming to understand the semantics of their features, with mixed results. For normal multiple-choice question answers, we significantly compress the query, key and value subspaces of the head without loss of performance when operating on the answer labels for multiple-choice questions, and we show that the query and key subspaces represent an Nth item in an enumeration feature to at least some extent. However, when we attempt to use this explanation to understand the heads' behaviour on a more general distribution including randomized answer labels, we find that it is only a partial explanation, suggesting there is more to learn about the operation of correct letter heads on multiple choice question answering.

Read the full paper here:
